5606 Safe-lock Kamlok female type B

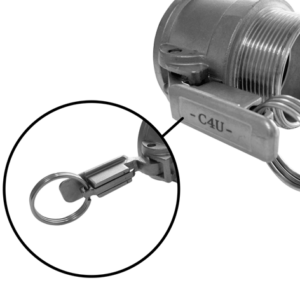

Safe-Lock KamlokFemale coupler with male thread type B including two handles with safety locking system to prevent unwanted disconnection of the coupling. Frequently used in critical applications in chemistry and petrochemistry to increase safety of employees and the environment.
|
|
| Norm | A-A 59326 25.09.98 (former MIL - C 27487) |
| Norm thread | DIN EN ISO 228-1 |
| Thread description | BSPT thread / R thread |
| Material | Stainless steel (1.4408) |
| Working pressure | 16 bar |
| Material seal/gasket | NBR |
| Colour sealing | Black |
| Material safety clip | Stainless steel (1.4301) |
| Material lever | Stainless steel (1.4408) |
| Quantity handles | 2 |
| Material ring | Stainless steel (1.4301) |
| Drawing |  |
Description
| Art.-no. | Nominal size | Weight |
|---|---|---|
| 5606019000 | 3/4″ | 0,260 kg |
| 5606025000 | 1″ | 0,360 kg |
| 5606032000 | 1.1/4″ | 0,410 kg |
| 5606038000 | 1.1/2″ | 0,450 kg |
| 5606050000 | 2″ | 0,690 kg |
| 5606063000 | 2.1/2″ | 0,980 kg |
| 5606075000 | 3″ | 1,160 kg |
| 5606100000 | 4″ | 1,450 kg |
