5611 Swiveling flange
Swiveling flangeFor safety clamp and hose clamp assembly Attention!! 10" + 12" version with chambers, therefore suitable only for hose clamp assembly |
|
| Norm | DIN 2817 / EN 1092-1 |
| Material | Hot dip galvanized steel |

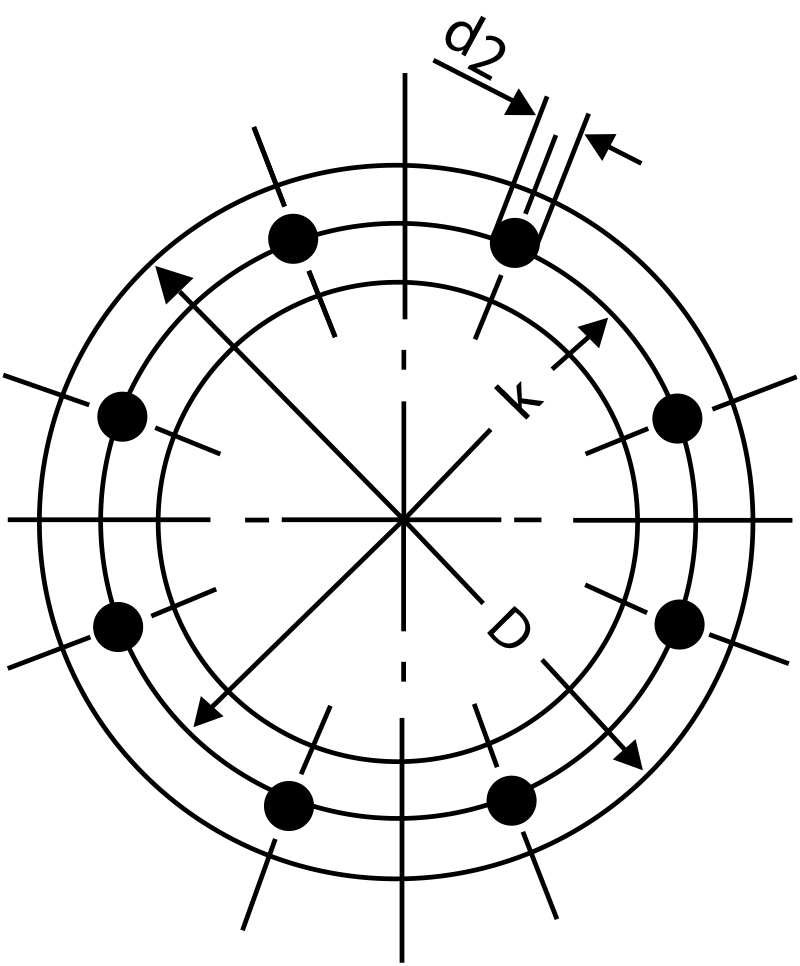

| Drawing |  |
Description
| Art.-no. | For hose Ø inner mm | Bore | Flange DN | Flange outside diameter | Pitchcirkel (K) | Number of holes | Bore diameter (d2) | Weight |
|---|---|---|---|---|---|---|---|---|
| 5611019019 | 19 | PN 40 | 20 | 105 | 75 | 4 | 14 | 1,226 kg |
| 5611025025 | 25 | PN 40 | 25 | 115 | 85 | 4 | 14 | 1,505 kg |
| 5611032032 | 32 | PN 40 | 32 | 140 | 100 | 4 | 18 | 2,363 kg |
| 5611038038 | 38 | PN 40 | 40 | 150 | 110 | 4 | 18 | 2,780 kg |
| 5611050050 | 51 | PN 16 | 50 | 165 | 125 | 4 | 18 | 3,698 kg |
| 5611063063 | 63 | PN 16 | 65 | 185 | 145 | 8 | 18 | 4,497 kg |
| 5611075075 | 76 | PN 16 | 80 | 200 | 160 | 8 | 18 | 5,520 kg |
| 5611100100 | 100 | PN 16 | 100 | 220 | 180 | 8 | 18 | 6,644 kg |
| 5611102102 | 102 | PN 16 | 100 | 220 | 180 | 8 | 18 | 6,732 kg |
| 5611125125 | 125 | PN 16 | 125 | 250 | 210 | 8 | 18 | 9,298 kg |
| 5611150150 | 152 | PN 16 | 150 | 285 | 240 | 8 | 22 | 13,148 kg |
| 5611200200 | 203 | PN 10 | 200 | 340 | 295 | 8 | 22 | 21,862 kg |
| 5611250250 | 254 | PN 10 | 250 | 395 | 350 | 12 | 22 | 25,200 kg |
| 5611300300 | 305 | PN 10 | 300 | 445 | 400 | 12 | 22 | 34,632 kg |
